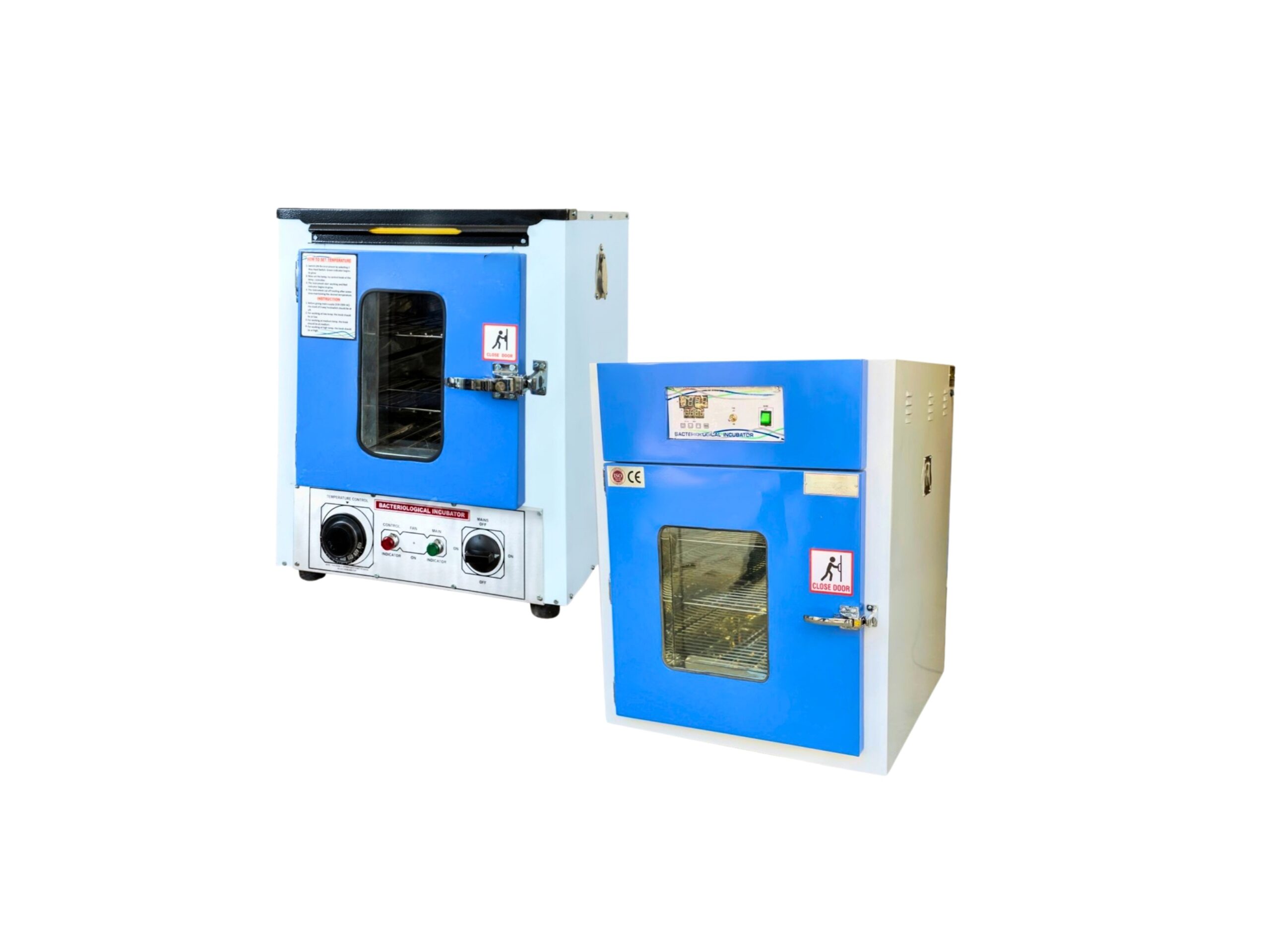

Double walled inside Aluminium/Stainless Steel 304. Outside made of Mild steel and painted in Epoxy Powder Coating/Stainless Steel GMP model. Insulation of 75mm by High Grade Glass wool. (Thermostatic/Digital Control options) Heating Elements are on three sides’ bottom, LHS & RHS. Ribs.
With air ventilation on two sides. Perforated adjustable two shelves. Temp range ambient +5C to 110C accuracy work on 220/230 volts-50H.
Optional 😕a) Air Circulation Fan.
b) Microprocessor PID Digital Temp. Controller with timer/Alarm.
c) PLC controller with 21 CFR software and data recorder.
CAT. NO.
TOP RECTANGULAR MM
NO. OF SHELVES
CAPACITY (APPROX.) LITRES
CONNECTED LOAD WATT/ KW
GI-C8I001/1
300 x 300 x 300 mm
2
28
300
GI-C8I001/2
350 x 350 x 350 mm
2
45
300
GI-C8I001/3
400 x 400 x 400 mm
2
65
400
GI-C8I001/4
450 x 450 x 450 mm
2
95
500
GI-C8I001/5
600 x 450 x 450 mm
2
125
500
GI-C8I001/6
600 x 600 x 600 mm
2
224
1 KW
GI-C8I001/7
900 x 600 x 450 mm
2
252
1 LW
GI-C8I001/8
900 x 600 x 600 mm
2
336
1.5 KW
GI-C8I001/9
900 x 900 x 900 mm
3
720
2 LW
Note :?Please ask for other capacities of your requirement. GMP Model inner and outer ss complete also available.
