Description

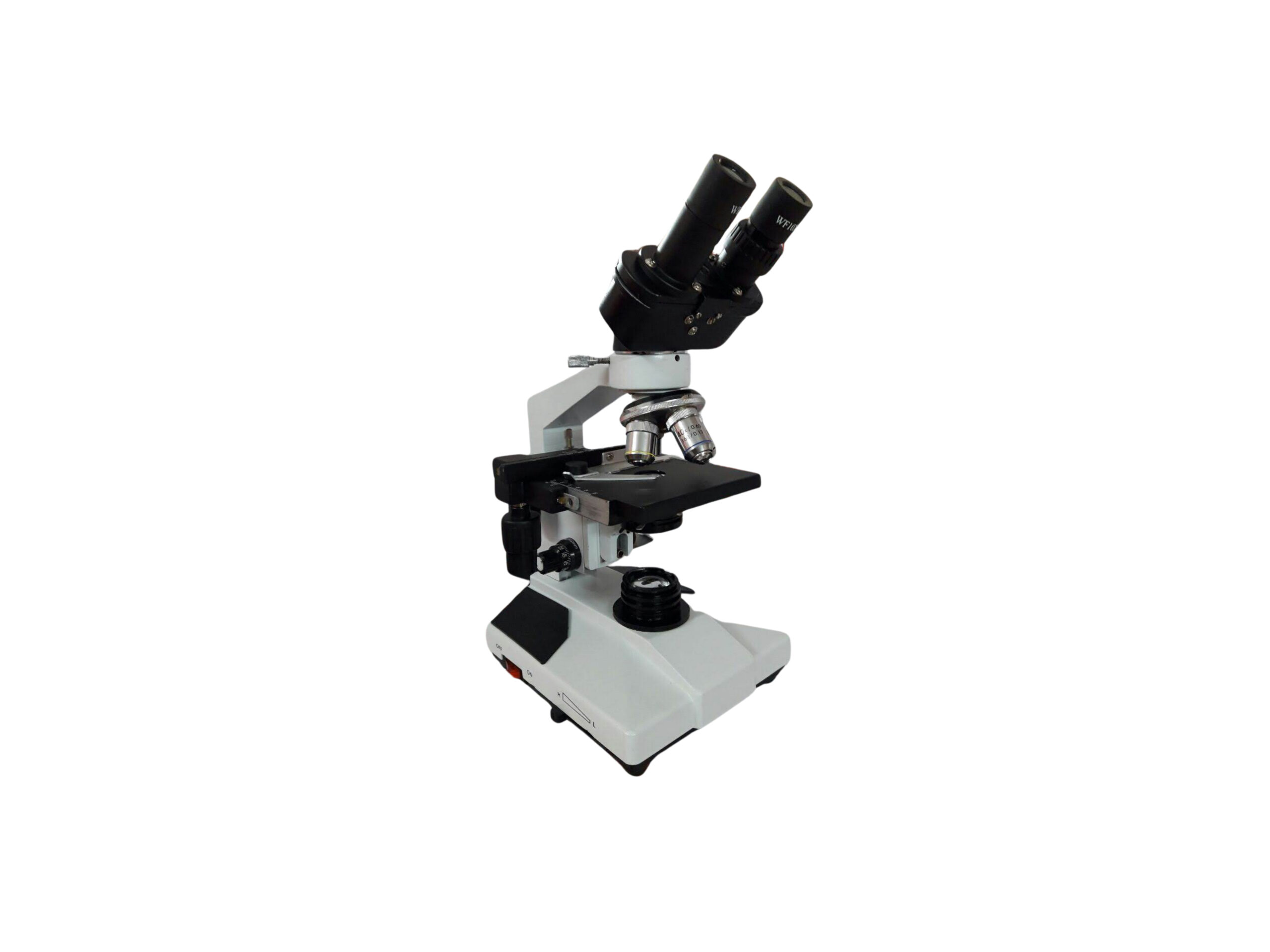

Constructed from pressure die-cast components, this microscope ensures durability, precision, and structural uniformity. Its color-corrected optical system delivers flat, high-resolution images through parfocal, pre-centered achromatic objectives and wide-field eyepieces.

The microscope features a low-friction, parfocal quadruple nosepiece turret and a movable sub-stage condenser (N.A. 1.3) equipped with an iris diaphragm and filter for optimal illumination control. The binocular head is fully rotatable through 360?, offering flexibility in viewing. All prisms and optical surfaces are anti-reflection coated to enhance image brightness and clarity.

It includes a coaxial graduated mechanical stage with precision X?Y movement, along with coaxial coarse and fine focusing controls for smooth and accurate focusing.

OPTICAL SPECIFICATIONS:

• Eyepieces: Wide Field 10?, Huygenian 5? or 15? (paired)
• Objectives: Achromatic 4?, 10?, 45? (spring-loaded), and 100? (spring-loaded) oil immersion
