Description

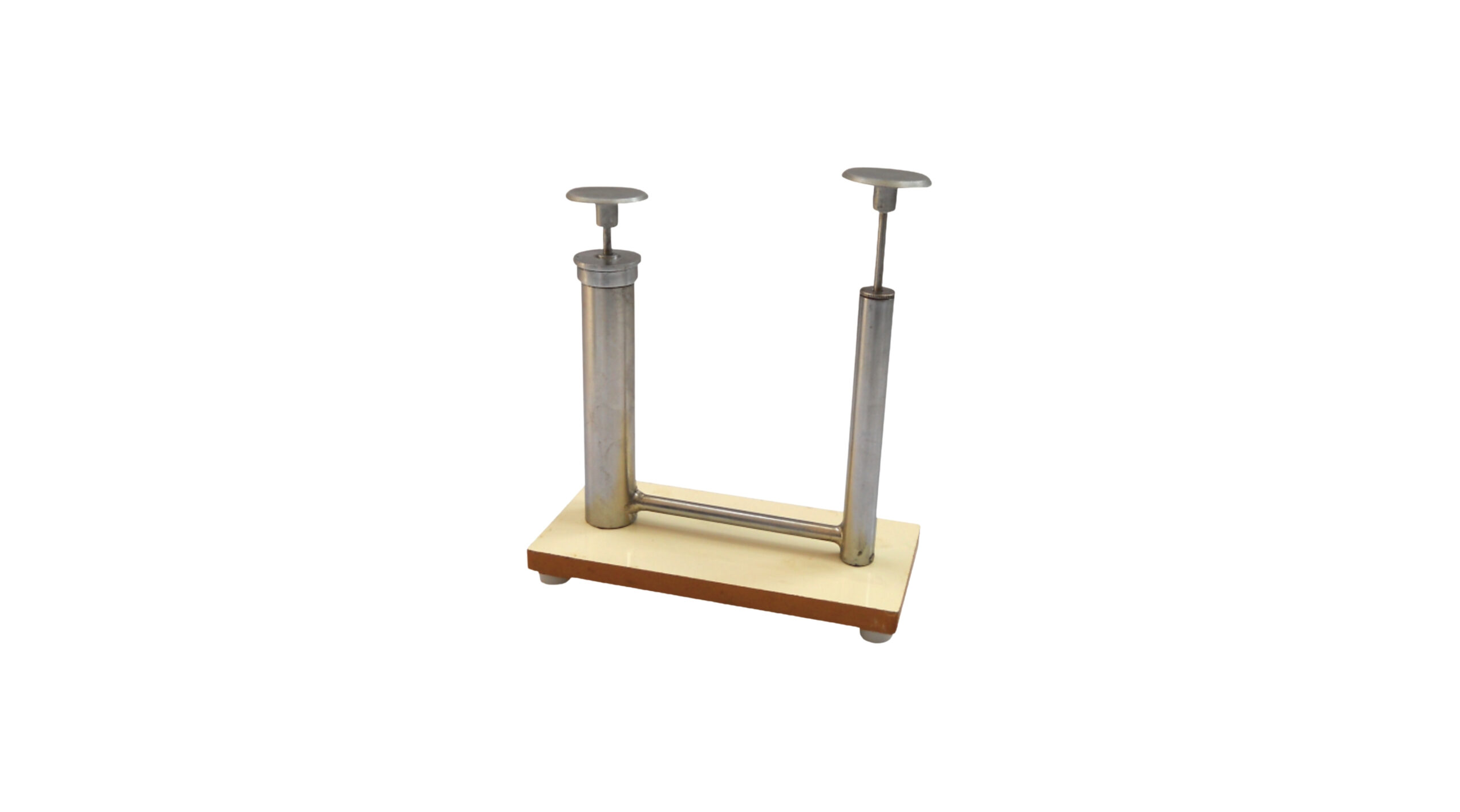

Demonstrate the relationship between pressure and velocity of a fluid. Comprises two brass cylinders 19mm and 38mm diameter respectively fitted with pistons on top. One cylinder with larger bore and the other with smaller bore. Both cylinders connected with horizontal tube ensures pressure transmission between the two cylinders. The apparatus is mounted on wooden base 200x100x22mm and overall height of apparatus with piston is 245mm.
