MECHANICAL TRAINING MODULES

SKU: GI-P3072 Category:

Description

Useful for demonstrating the most fundamental and frequently used mechanism. Very useful for Engineering, technical education and vocational students. All the components are made of high degree of precision. These modules are assembled on transparent Perspex sheets to facilitate teaching. Easy to assemble or disassemble.

Type Module

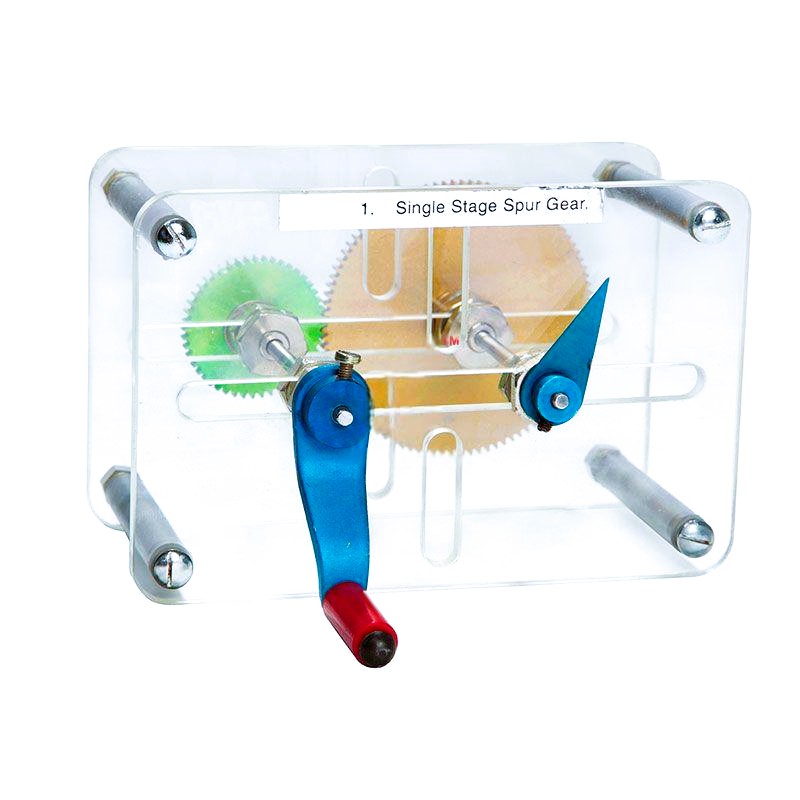

1. Single Stage Spur Gear.
2. Single Stage Spur Gear with Intermediate.
3. Two Stage Spur Gear.

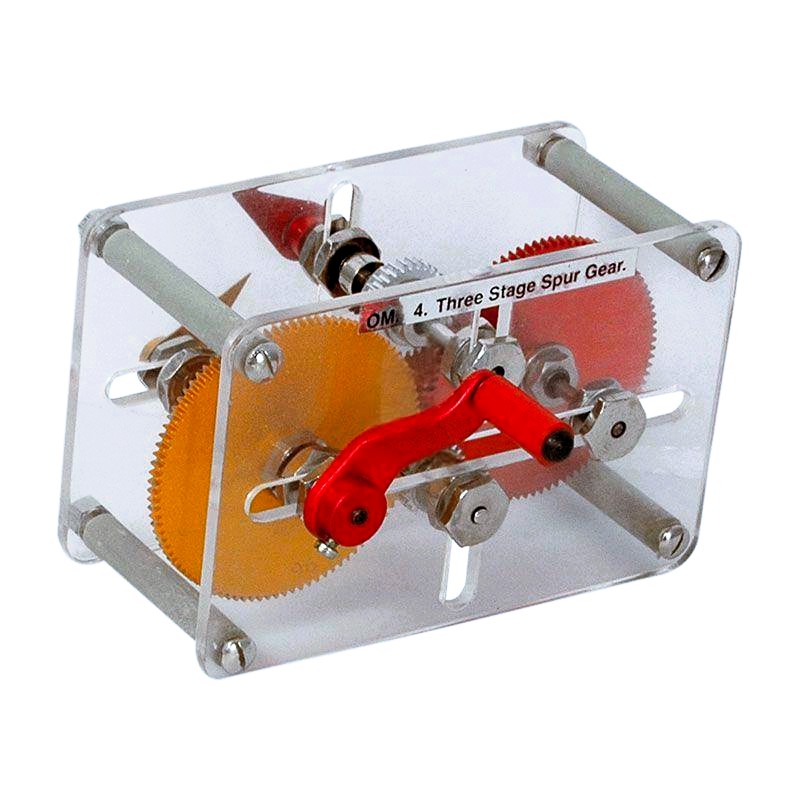

4. Three Stage Spur Gear.

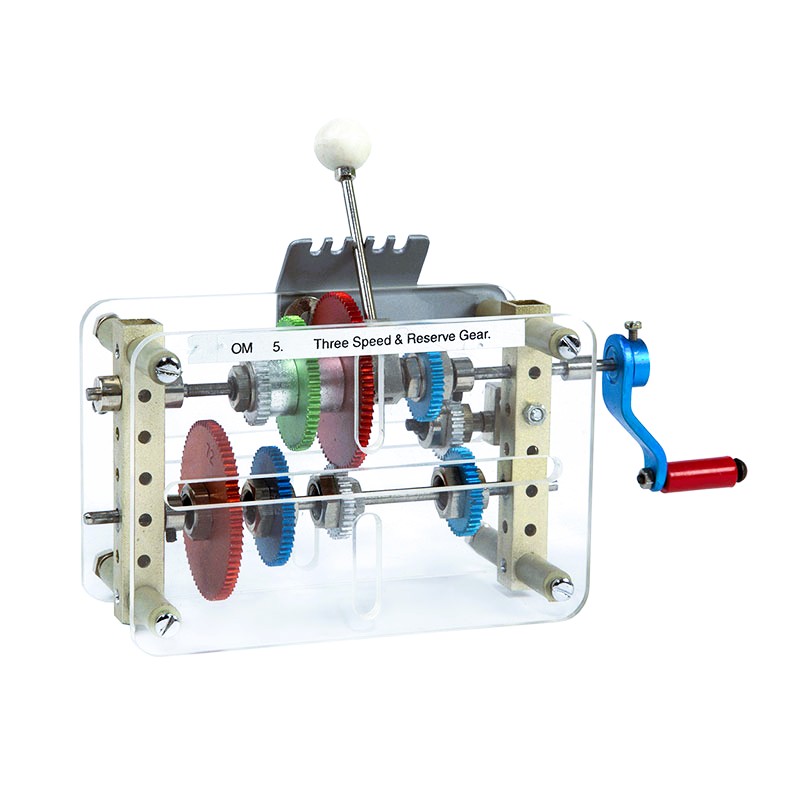

5. Three Speed & Reverse Gear.

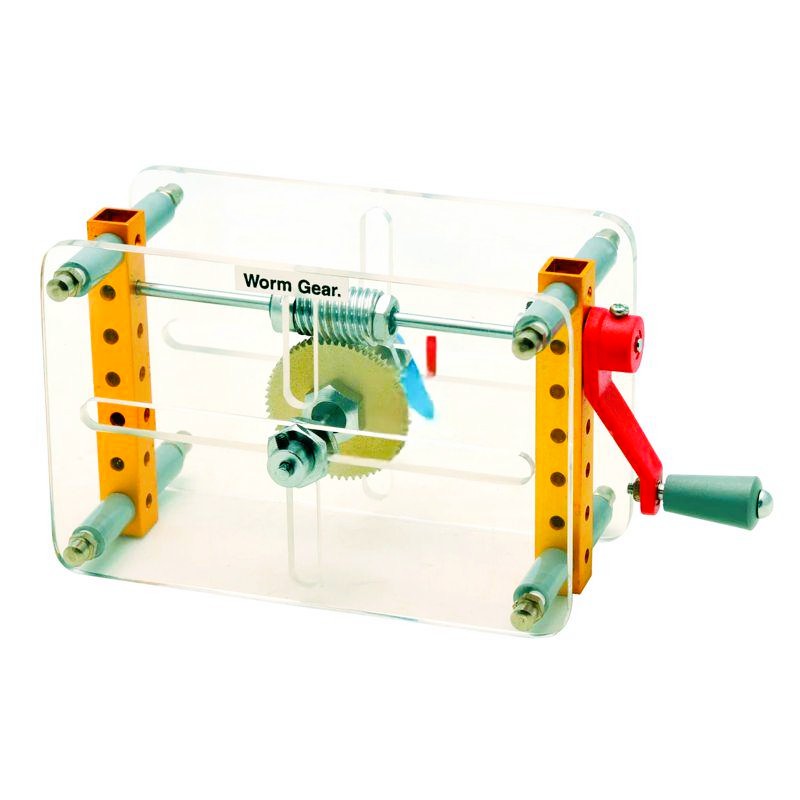

6. Worm Gear.

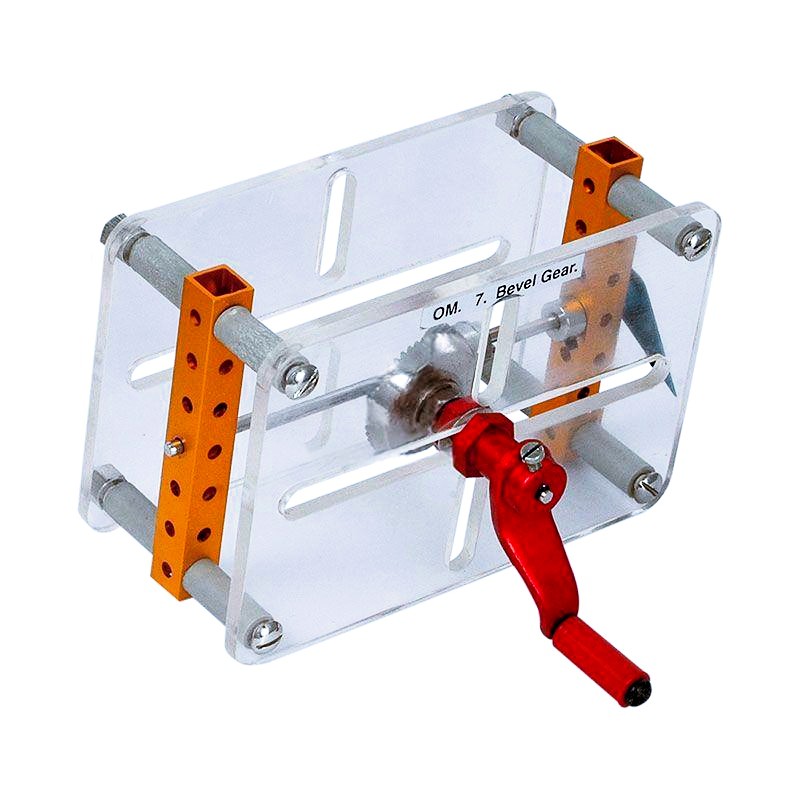

7. Bevel Gear.
8. Rack & Quadrant Gear Drive.
9. Reversing Gear (Tumbler Type).
10. Epicyclic Gear (Sun & Planet).
11. Cycloidal Motion Demonstration.
12. Internal Rolling Gear Drive. .12 .13
13. Internal Gear & Pinion Drive.
14. Helical Gears.
15. Spiral Gear-98.
16. Spiral Gear single stage with Intermediate Gear.
17. Herring Bone Gears.
18. Crank Drive to Oscillating Link.

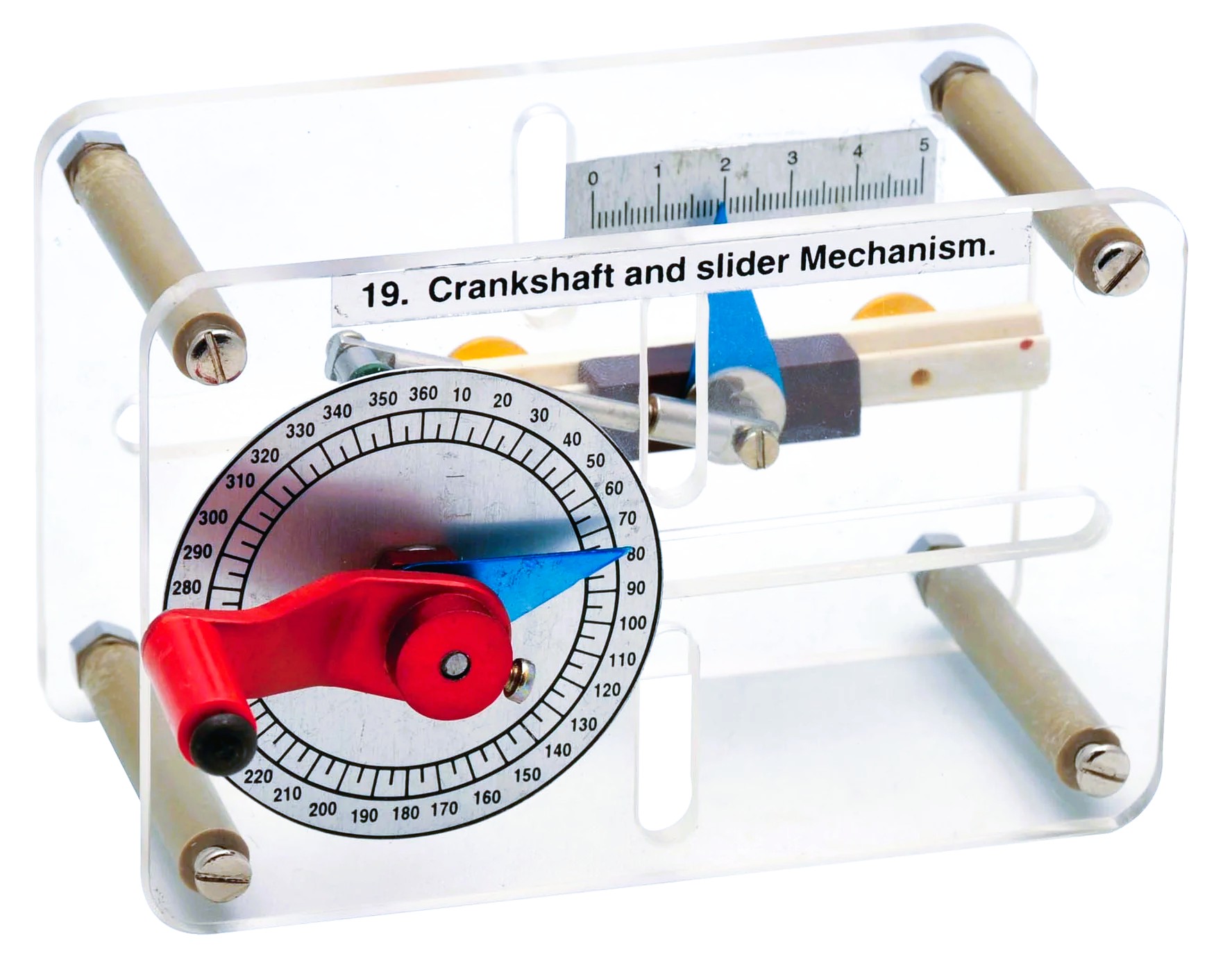

19. Crankshaft & Slider Mechanism,
20. Two Crank & Linkage Drive (Variable Velocity).
21. Crank & Slotted Link Drive (Oscillator).
22. Crank & slotted Link Drive (Variable Velocity).

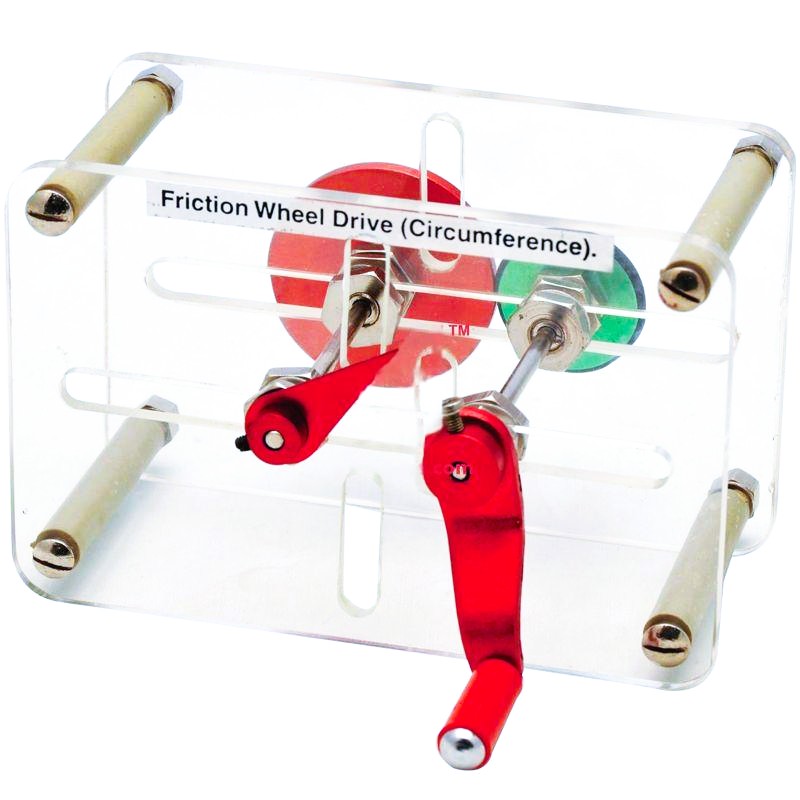

23. Friction Wheel Drive (Circumference).
24. Centrifugal Mechanism & Clutch Drive.
25. Friction Wheel Drive (Variable Speed).

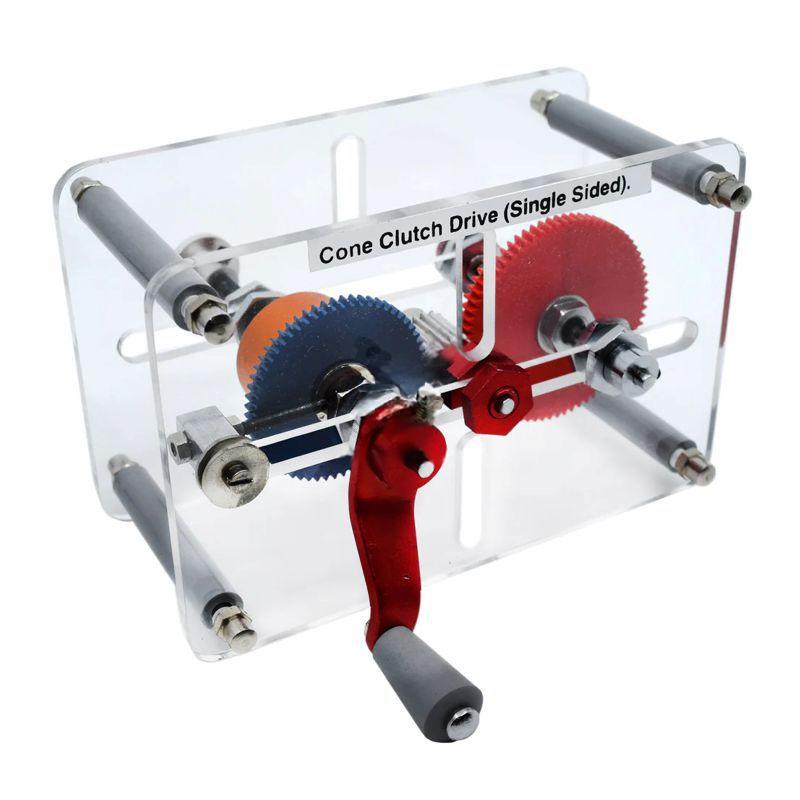

26.  Cone Clutch (Single Sided).
27.  Cone Clutch Drive (Two Speed).
28. Dog Clutch Drive (Single Sided).
29.  Dog Clutch Drive (Two Speed).
30.  Flat Belt Drive (With Tensioner).
31.  Belt Drive (Toothed).
32. Belt Drive (Single Speed).
33. Belt Drive (Two Stage).
34. Belt Drive (Contra Rotation).

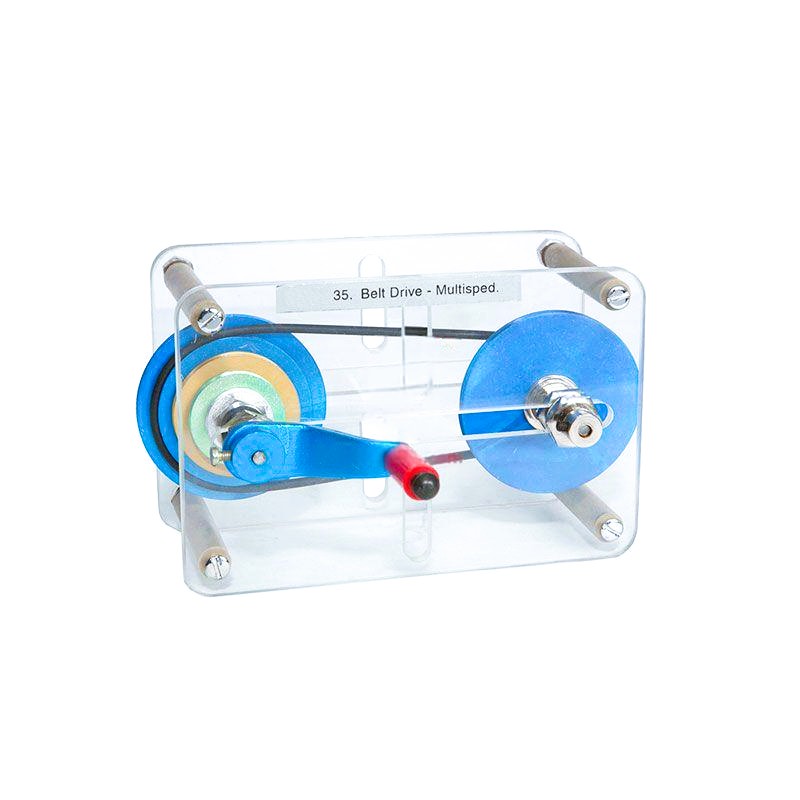

35. Belt Drive (Multi speed).
36. Chain Drive (With Tensioner).
37. Geneva Drive (Maltese Cross).
38.  Sliding Wedge Gear With Straight Line & Arcuate Output.

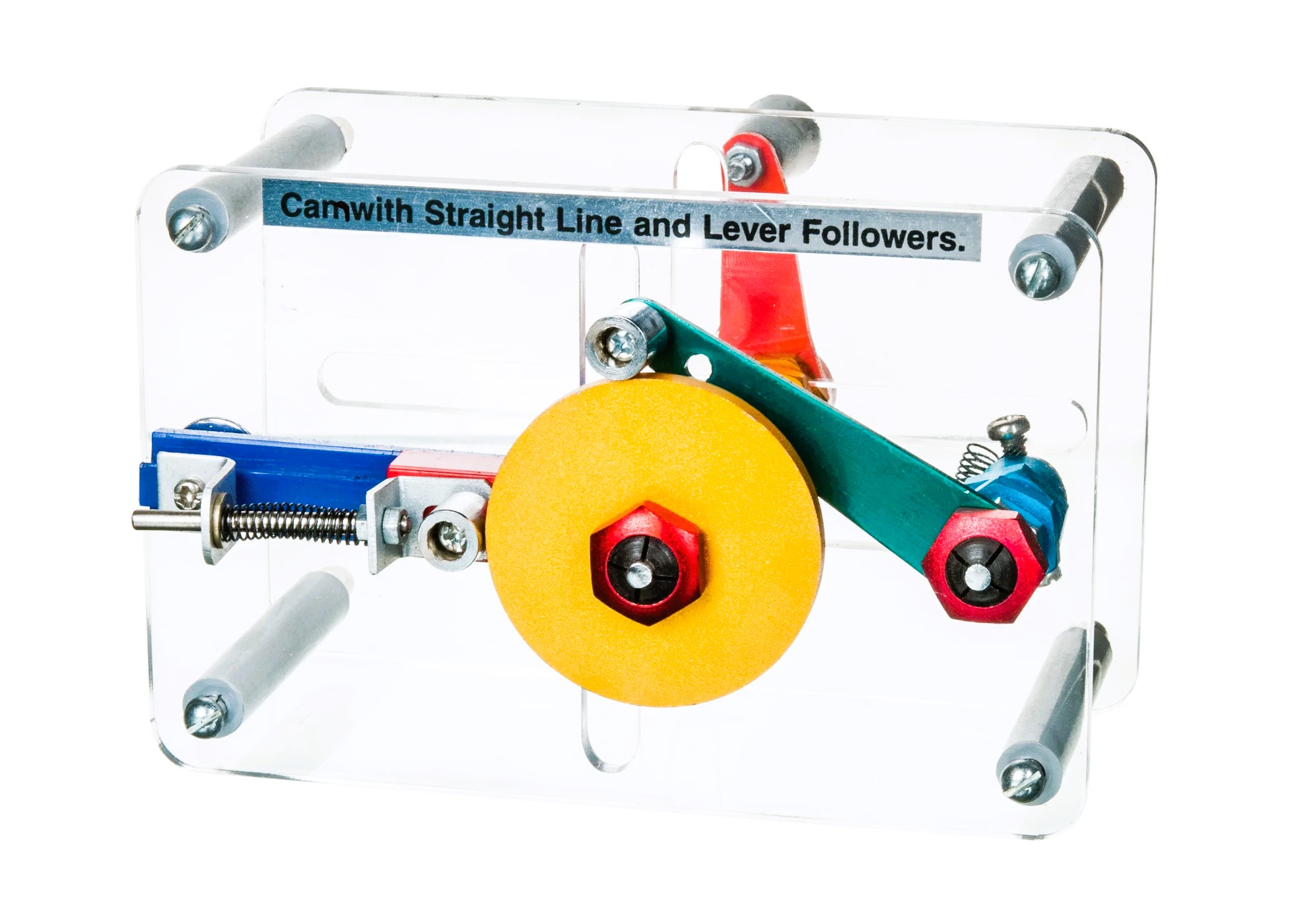

39. Cam With Straight Line & Lever Followers.
40. Face Cam Drive-Free Follower.
41. Face Cam Drive (Double Sided) Trapped Follows:
42.  Oldham Coupling.
43. Differential Gear.
44.  Lathe Screw Cutting Model.
45.  Shaper Model.
46.  Crane & connected rod model
