Description

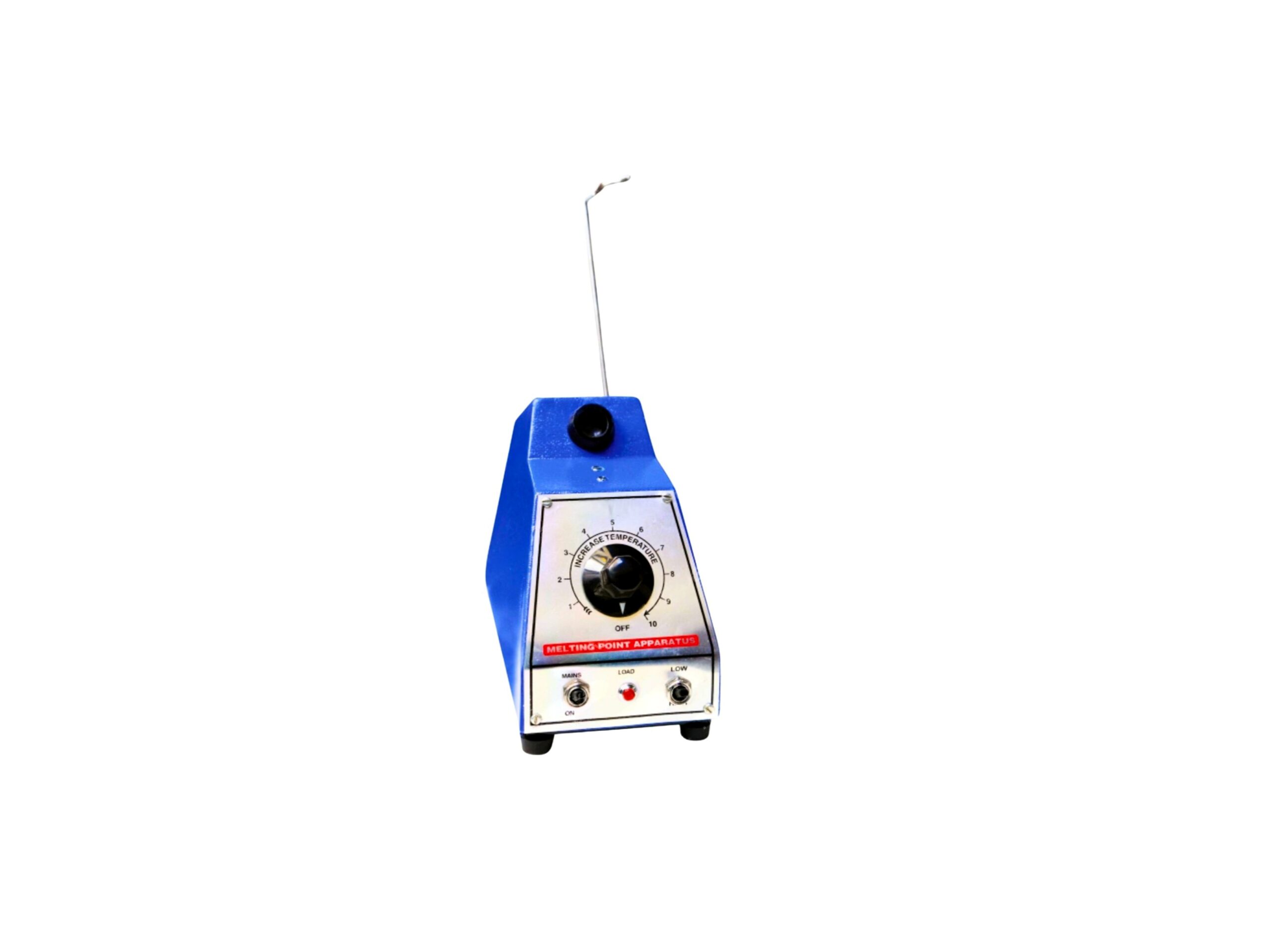

A metallic heating block is provided with holes to receive three capillary tubes and a stem type thermometer. The body is finished in stoving enamel paint. The apparatus can measure melting point. Up to 350C. The block is heated by superior heating elements and temp. is controlled by a heating regulator. A shadow less lamp has been provided to illuminate the capillaries and focusable magnifier facilitates in observations. The whole unit is housed in an aluminium cast casing and provided with a control panel. Provided with indicator lamps, heat energy regulator, on-off switch, cord-plug etc. the equipment is to work on 220V AC 50Hz single phase. Supplied without 10 thermometer and capillaries.
