Description

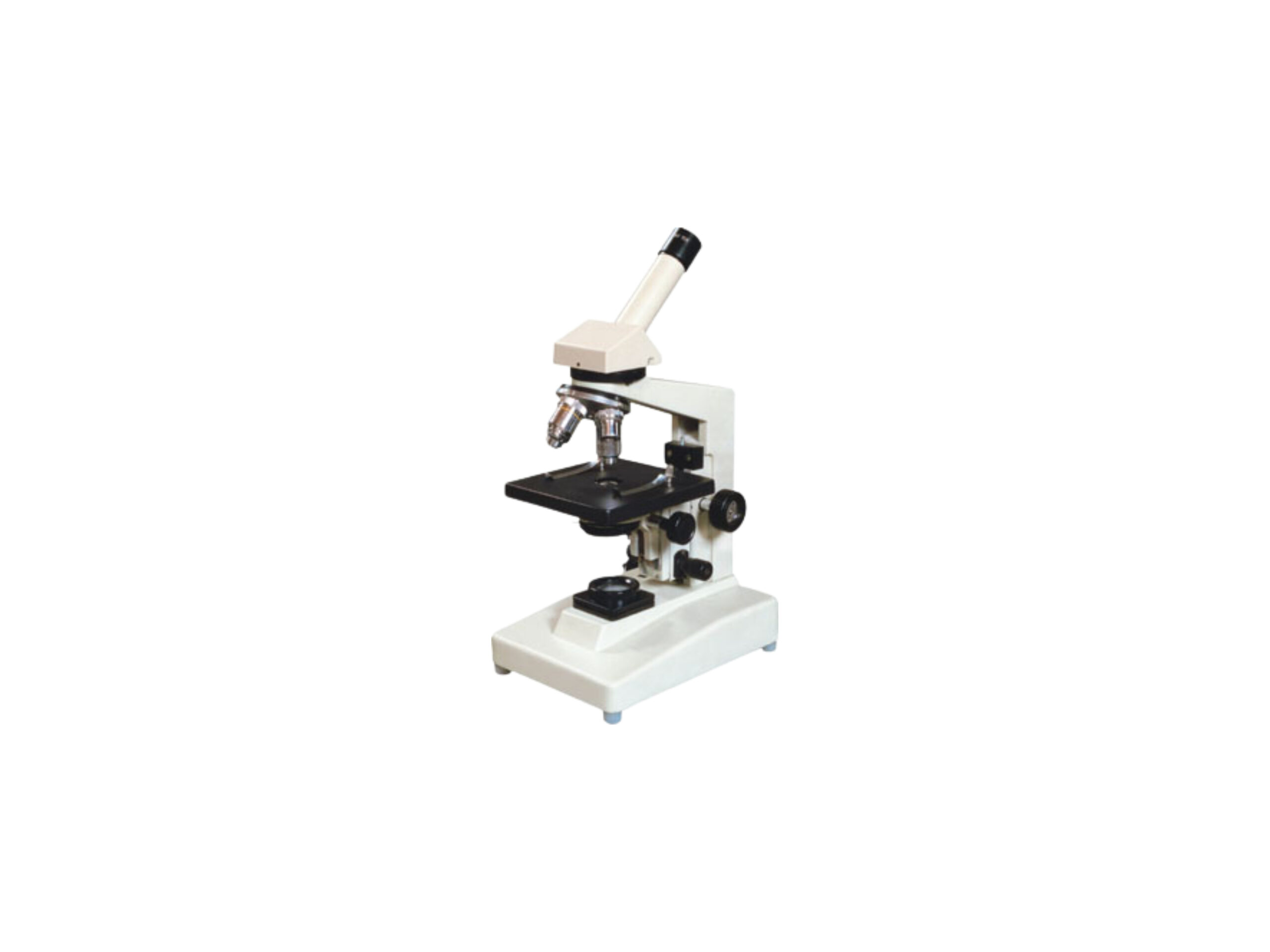

This microscope features a modern illumination system with a 6V?20W built-in transformer, providing bright and stable light for clear observation. It includes a sub-stage Abbe condenser (N.A. 1.25) with a swing-out filter holder for precise light control and a quadruple revolving nosepiece for easy objective selection. The unit operates on 220?230V AC, 50 Hz power supply.

The microscope is supplied without a mechanical stage and includes a cleaning cloth and dust cover. It is packed securely in styrofoam, with an optional wooden storage box available.

OPTICAL SPECIFICATIONS:

• Objectives: 4?, 10?, 45? (spring-loaded), 100? oil immersion (spring-loaded)
• Eyepieces: 5?, 10?, or 15? (optional wide-field eyepiece available)
