Description

Product Features:

• AC/DCV, DCA, Resistance, Diode Check, Continuity, dB & Transistor leak current.
  20 kOhm/VDC sensitivity.
• Mirrored scale.
• 1-Year Warranty.

Product Description:

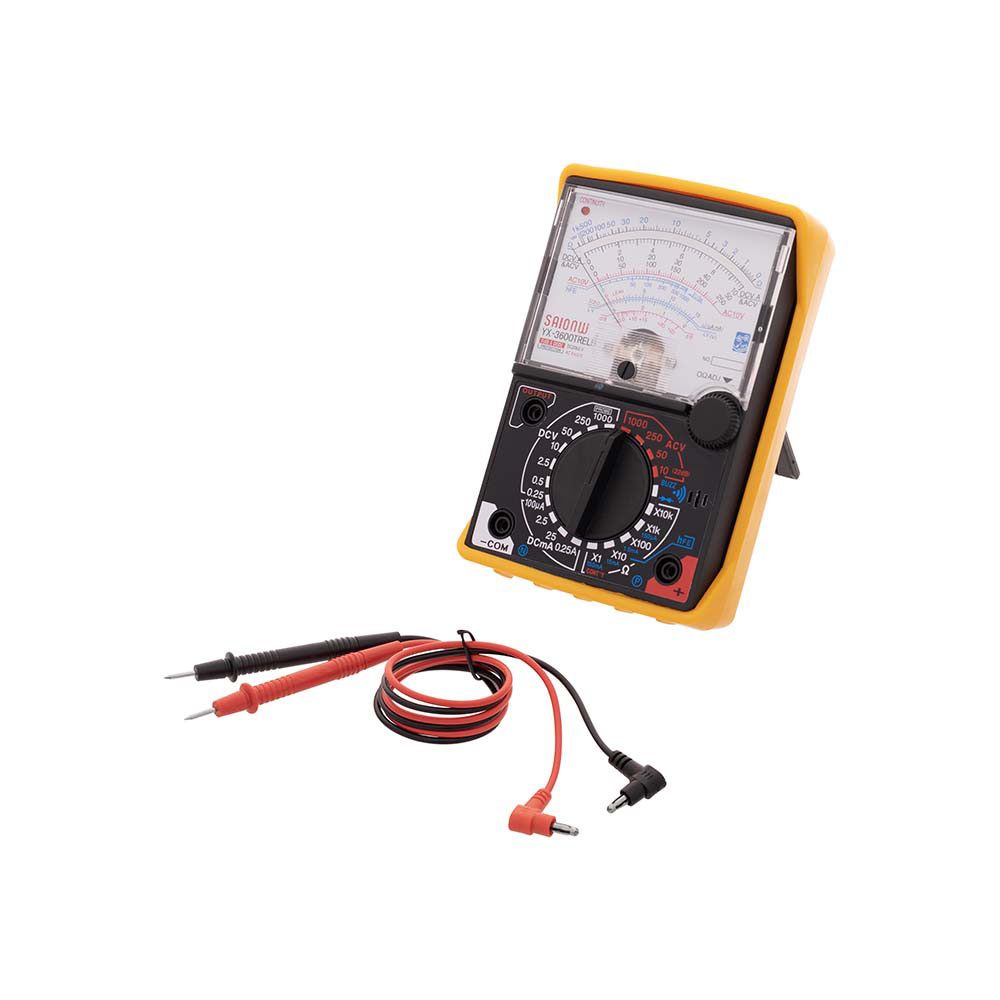

YX-360TRE-B is an analog multimeter, you can use it to measure AC/DC voltage, DC current, resistance, diode check, continuity, and transistor leak current, for DC current, it can measure as low as 10 micro amps and up to 250 mA, which is hard to do with a digital multimeter.

Specifications:

DCV: 0 ? 0.1V ?1% 0.25V/2.5/10V/50V/250/1000 ?3%.
ACV :0-10/50/250/1000V?4%*DCA:0- 50?A/2.5mA/25mA/250mA?3%.
Resistance: 0 ? 2K/20K/200K/2M/20Mohm ?3% *dB: -10 dB ? 22 dB.
Diode check (including LED).
Continuity: Both Buzzer & flash.
Transistor leak current.
Features:

• All range fused.
  ? Compact size.
  ? Tilt back-stand.
  ?Continuity flash.
  ? 0-ohm adjustment

Accessories:

• Test leads (attached).
  ? AA battery X 2 (installed).
  ? User Manual.
  ? Brand Name: Sunwa
  ? Model Number: YX-360TRE-B
  ? Power Source Type: Battery-powered.
