Description

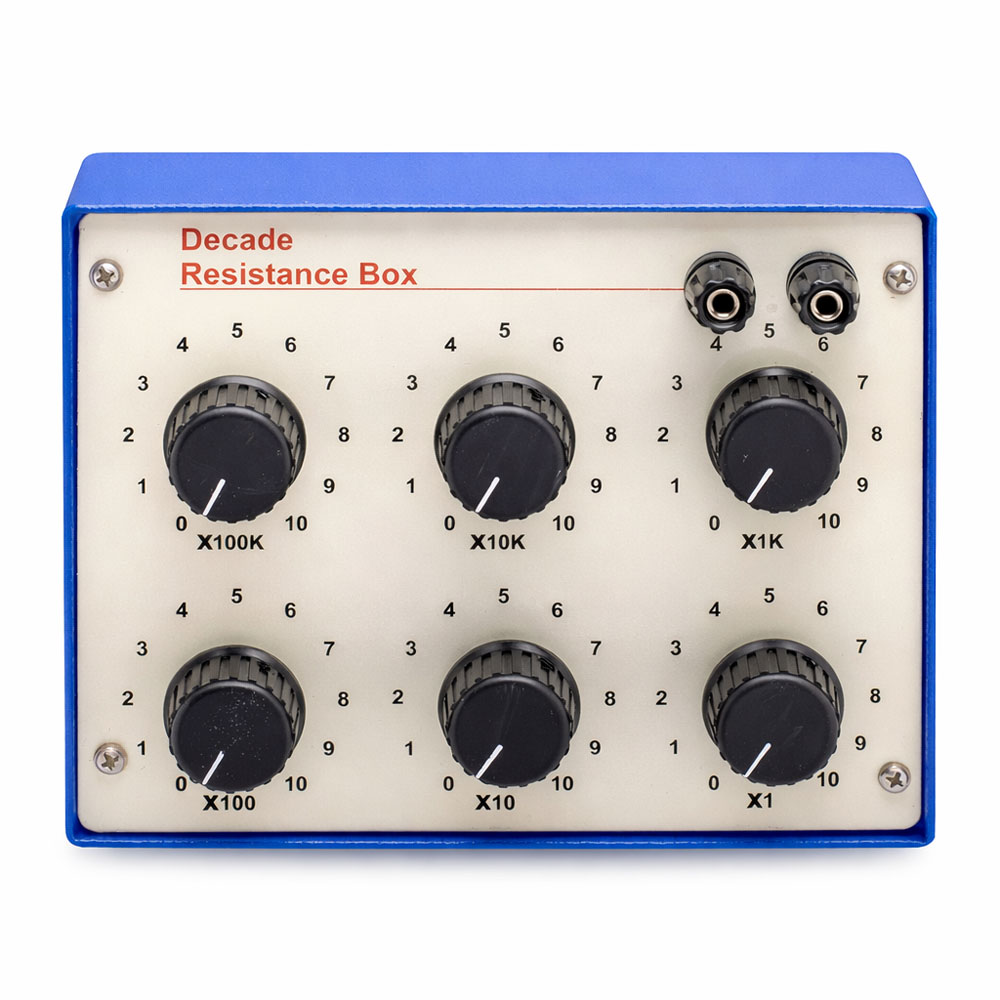

Housed into a Metal Casing. Their main function is to create a value of passive elements (Resistance) using a combination of the rotary decade switches. A wide range of passive element is selectable from the given assembly, which allows direct read out from the position of knobs. Values can be obtained from the onboard terminal.?The individual decades are series connected, each having switch position of 0 to 10 and are mounted in line with 4mm socket terminals linked to the ends of the chain and to each inter decade junction.
