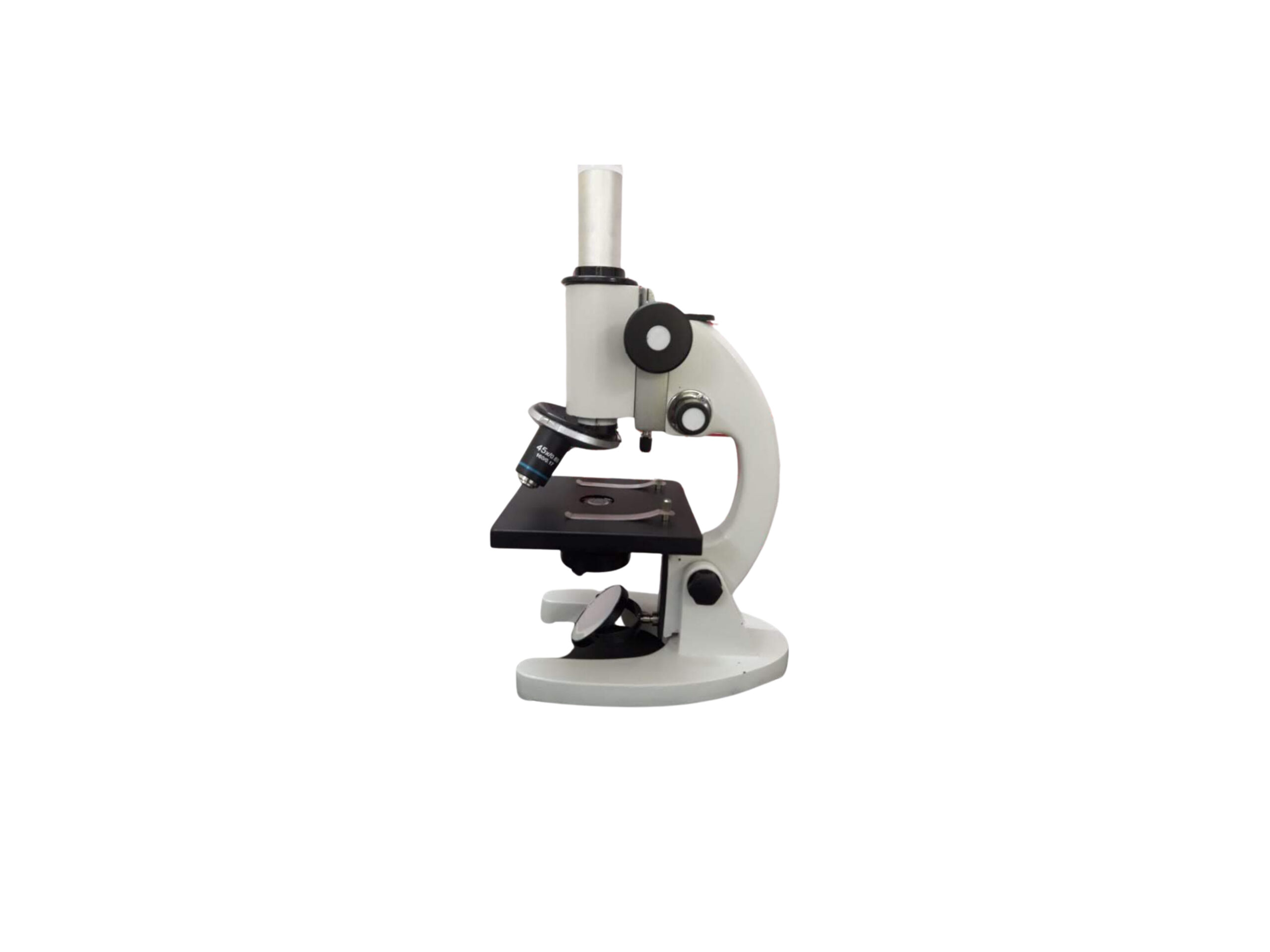

Description

FEATURES:

• Made from pressure die-cast components for superior durability, strength, and structural precision.
• Stable, well-balanced vertical body, inclinable up to 90? for convenient viewing.
• Mechanical tube length: 160 mm.
• Dual focusing mechanism with separate coarse and fine adjustment knobs; coarse focus includes a tension adjustment system for smooth and precise operation.
• Triple revolving nosepiece with international standard threads and click stops ensuring accurate centering of objectives.
• Fitted with high-quality achromatic objectives and Huygenian eyepieces for sharp, distortion-free images.
• Safety stopper included to prevent accidental contact between the slide and objectives.
• Fixed square stage (110 ? 110 mm) equipped with two non-removable stage clips for slide stability.
• Sub-stage plano-concave mirror in metal mount for daylight illumination; can be replaced with an electric light source if required.
• Stage fitted with an iris diaphragm and a sub-stage two-lens Abbe condenser (N.A. 1.2) featuring smooth rack and pinion movement for accurate light adjustment.
• Finished in durable smooth black or scratch-resistant grey epoxy coating.
• Supplied with dust cover and cleaning cloth.
• Packed in a molded styrofoam box or wooden cabinet with lock and key for safe storage and portability.

OPTICAL FEATURES:

• Eyepieces: Huygenian 10? and 15?
• Objectives: Achromatic 10? and 40? (SL)
• Magnification Range: 100? to 600?
