Description

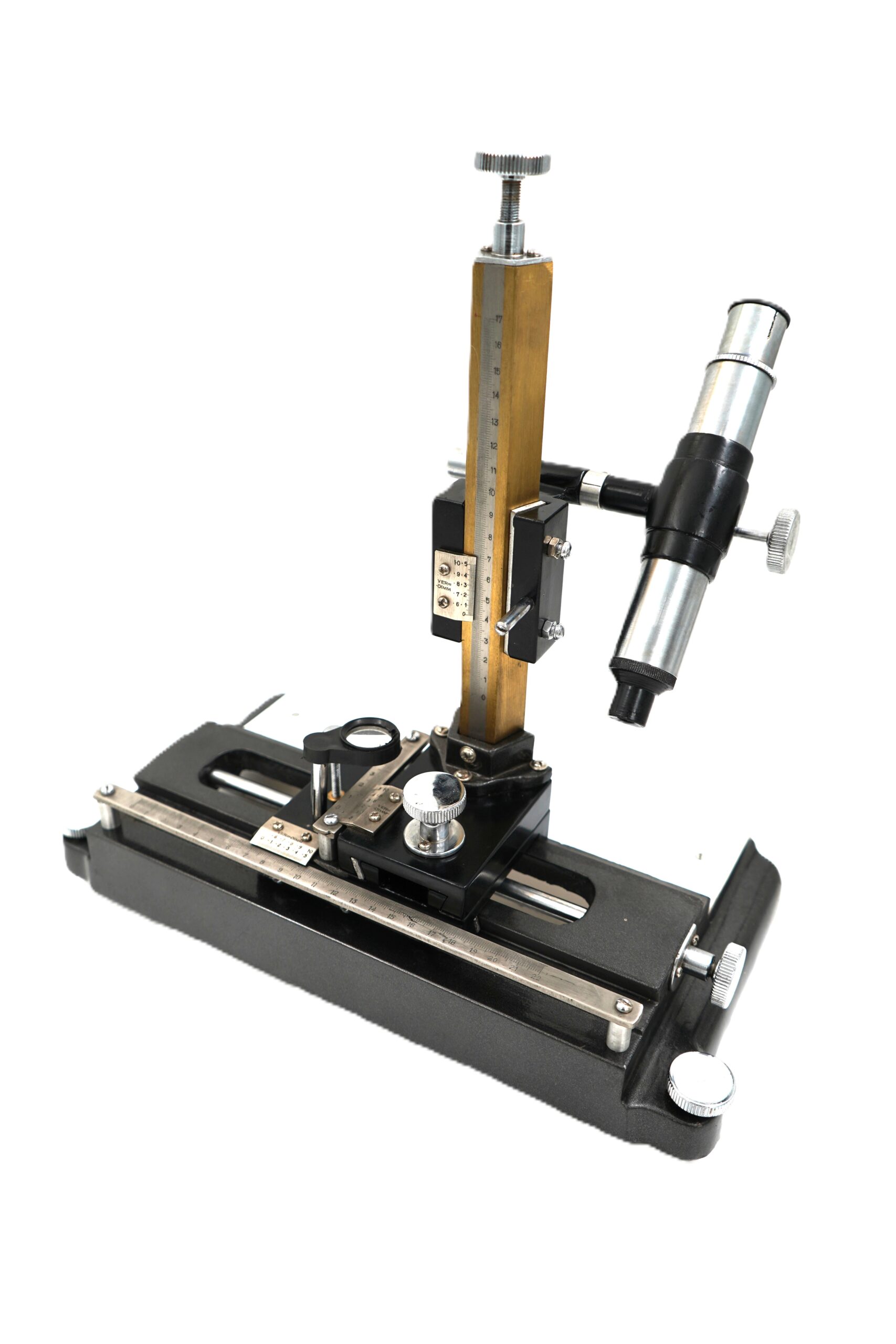

Heavy cast iron base with brass vertical column and stainless steel scales and Rigid, vibration-free, with adjustable levelling screws. Screw-driven fine adjustment knobs for X (horizontal), Y (vertical), and rotational axes. Three Motion (Horizontal, Vertical, and Rotational movement).  Fine adjustment screws provided for all three axes. Horizontal and vertical scales graduated in mm or cm. Slides 22 cm horizontally and 17 cm vertically and 6 cm rotational. Vernier Reading 0.01 mm or 0.02 mm. Achromatic objective with eyepiece; 10X or 15X magnification. Supplied in wooden box with instruction manual.
